Electric Kiln Ceramic Oven Electric Kiln High Temperature Heating Machine 220V 0.88 cu ft Max 2372℉

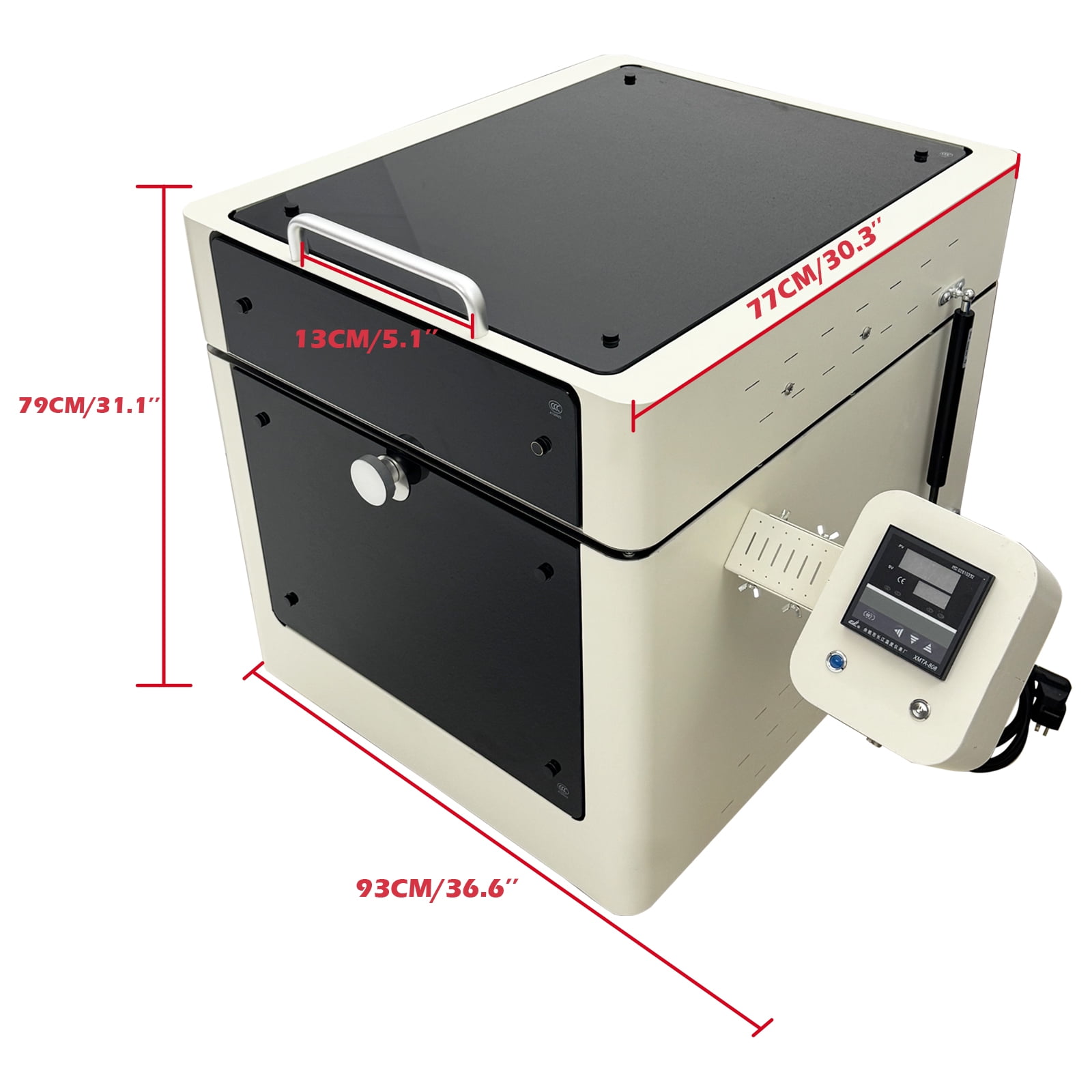

Product Overview <br>This compact smart high-temperature ceramic kiln features space-saving design, excellent high-temperature performance, uniform heating, user-friendly operation, enhanced safety, and energy efficiency. It is primarily used for firing small ceramic products, sintering glazes, conducting teaching demonstrations, and supporting creative projects, making it widely applicable in homes, classrooms, art studios, and scientific research laboratories. <br> <br>Product Parameters <br>Voltage: AC220V <br>Phase Number: 1 <br>Power: 3.5kW <br>Power socket: 16A <br>Interior Dimensions: 11.8"*11.8"11.0"*(300mm*300mm*280mm) <br>Shelf Board Dimensions: 11.2"*11.2"(26cm*26cm) <br>Effective Volume: 0.88ft3 (0.025m3) <br>Exhaust/Viewing Port Diameter: 0.79"(20mm) <br>Exterior Surface Temperature: ≤50°C (within 3 hours of operation) <br>Capacity Reference: Fits 35 cups(HxW) - 3.9"x2.75"(100mmx70mm) <br>Maximum firing temperature: 1300℃(2372℉) <br>Conventional firing temperature: 1250℃(2282℉) <br>Door Opening: Top-hinged, opens 0-80 degrees <br>Door Lock: Solid aluminum alloy knob <br>Temperature Control: Fully automatic programmable rate control <br>Heating Elements: Molybdenum disilicide heating elements(arranged on 5 sides) <br>Control Panel: Single-curve standard control cabinet with LED digital display and mechanical key operation. Pre-stores 1 editable 32-segment firing curve <br>Heating rate: 8℃/M <br>Exterior Material: Phenolic resin + Explosion-proof high-temperature tempered glass + Cold-rolled carbon steel plate <br>Insulation Material: Thermally made mullite brick + Polymer nano board <br>Package size: 33.1"*29.1"*48.0" (84cm*74cm*122cm) <br>Net weight/Gross weight: 405.6lbs(184kg)/496lbs(225kg) <br> <br>Attention <br>No quality problem does not support 30 days free return. <br> <br>Item Included(057222) <br>Electric Kiln High Temperature Heating Machine *1 <br>Accessory Kit *1

• ‌Studio-Grade Performance, Stable & Efficient: Designed for high-temperature firing up to 1300°C (common use at 1250°C).  High-quality insulation keeps the exterior below 50°C, ensuring long-term stability and operational safety.

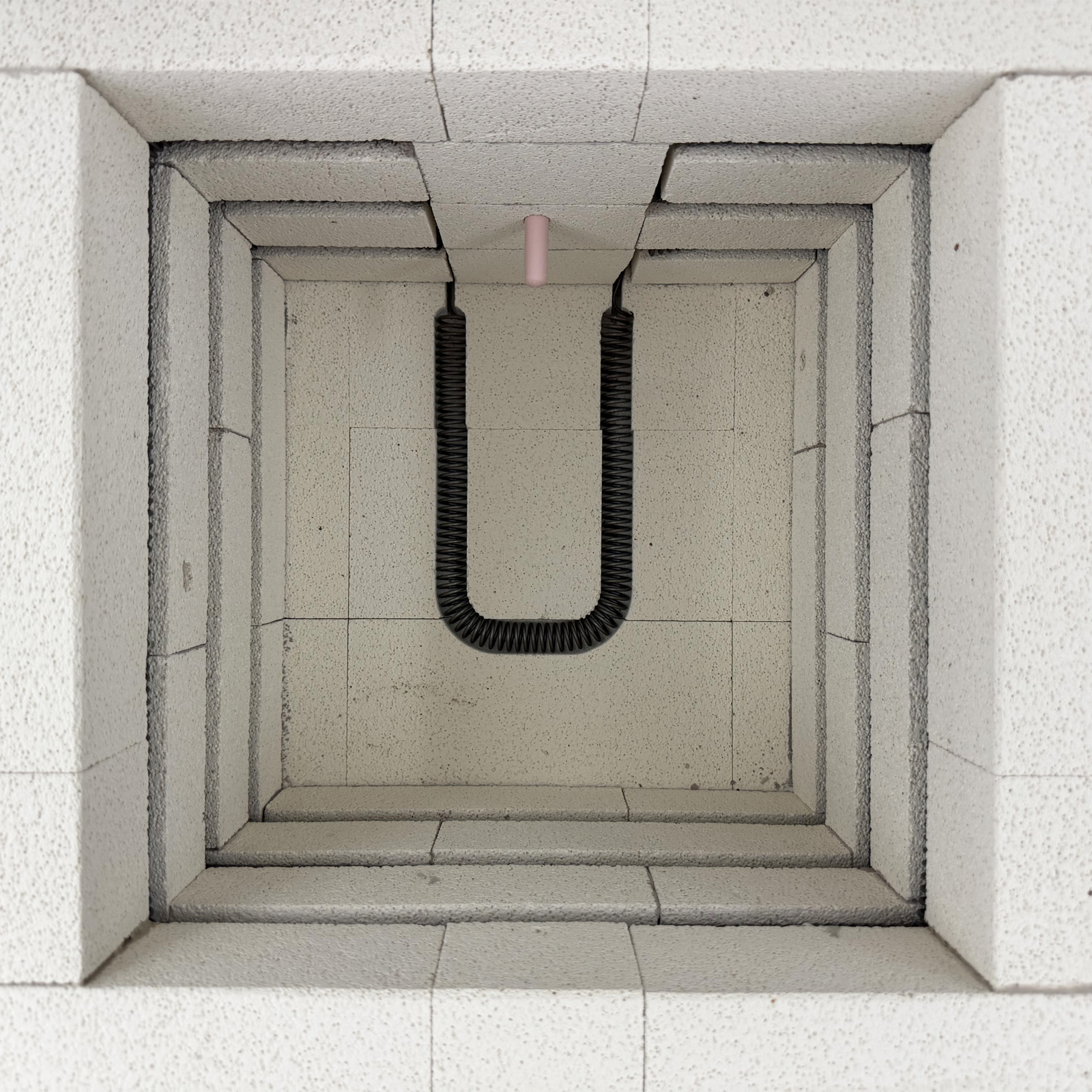

• True 5-Side Heating for Superior Uniformity:  Heating elements are arranged on all four sides and the bottom of the rectangular chamber, creating a true 5-side heating system for exceptional temperature uniformity and consistent, high-quality results.
• Programmable Intelligence, Effortless Operation: Features a fully automatic programmable controller with one pre-set 32-segment curve.  Easily set it and let the kiln automate complex firing cycles, perfectly replicating successful results.
• Compact Footprint, Powerful Capacity: Despite its compact size, it offers a generous 0.025m³ (25L) capacity, perfectly balancing space-saving design with creative needs, ideal for home studios, classrooms, and small-scale production.
• Robust Construction, Built to Last: Built with multi-layer insulation and a carbon steel plate body.  The top-opening door with a large high-temperature glass viewport and solid aluminum lock ensures robust durability and safe, easy monitoring.
